Temperature Sensor (LM35 + PIC16F877A)
Here's one temperature sensor (thermometer) circuit that you can easily build. It uses the popular PIC 16F877A microcontroller. The temperature sensor is LM35. The LM35 outputs an analog voltage proportional to the temperature. The output from the LM35 is 0.1V/'C. So, when temperature sensed is 61'C, the output voltage is 0.61V. This analog voltage is read by the PIC and processed to display the corresponding temperature value on the LCD.
The temperature range for this circuit is 0'C to 150'C.
The analog to digital conversion is done by the PIC ADC module. In the code, I've used the mikroC library function for ADC. You can view the library file here: http://www.mikroe.com/download/eng/documents/compilers/mikroc/pro/pic/help/adc_library.htm
However, you should have a knowledge of how the ADC module works and how to use it. I had written a tutorial on modalities of operation of the PIC 16F877A ADC. You can find the tutorial here:
http://tahmidmc.blogspot.com/2012/03/modalities-of-using-adc-module-of.html
For LCD interfacing, I used the mikroC LCD library. You can view the library file here: http://www.mikroe.com/download/eng/documents/compilers/mikroc/pro/pic/help/lcd_library.htm
Here is the code for PIC16F877A:
(You can download the source file from: https://rapidshare.com/files/3044512089/LM35PIC16F877A.c)
--------------------------------------------------------------------------------------------------------------
//Programmer: Syed Tahmid Mahbub
//Compiler: mikroC PRO for PIC v4.60
//Target PIC: PIC16F877A
--------------------------------------------------------------------------------------------------------------
sbit LCD_RS at RB4_bit;
sbit LCD_EN at RB5_bit;
sbit LCD_D4 at RB0_bit;
sbit LCD_D5 at RB1_bit;
sbit LCD_D6 at RB2_bit;
sbit LCD_D7 at RB3_bit;
sbit LCD_RS_Direction at TRISB4_bit;
sbit LCD_EN_Direction at TRISB5_bit;
sbit LCD_D4_Direction at TRISB0_bit;
sbit LCD_D5_Direction at TRISB1_bit;
sbit LCD_D6_Direction at TRISB2_bit;
sbit LCD_D7_Direction at TRISB3_bit;
unsigned long ADRead;
unsigned int vDisp[3];
unsigned char Display[7];
void main() {
PORTA = 0;
TRISA = 0X01;
PORTB = 0;
TRISB = 0;
LCD_Init();
LCD_Cmd(_LCD_CURSOR_OFF);
LCD_Cmd(_LCD_CLEAR);
LCD_Out(1, 1, "Temp:");
//Display = "+125 'C";
Display[4] = 39; //'
Display[5]= 'C';
ADCON1 = 0x0E;
ADC_Init();
while (1){
ADRead = (ADC_Get_Sample(0) * 500) >> 10;
vDisp[0] = ADRead / 100;
vDisp[1] = (ADRead / 10) % 10;
vDisp[2] = ADRead % 10;
Display[1] = vDisp[0] + 48;
Display[2] = vDisp[1] + 48;
Display[3] = vDisp[2] + 48;
LCD_Chr(1, 8, Display[0]);
LCD_Chr(1, 9, Display[1]);
LCD_Chr(1, 10, Display[2]);
LCD_Chr(1, 11, Display[3]);
LCD_Chr(1, 12, Display[4]);
LCD_Chr(1, 13, Display[5]);
//LCD_Out(1, 8, ); // 'Show temperature
delay_ms(200); //200ms delay for waiting
}
}
--------------------------------------------------------------------------------------------------------------
Reference documents:
LM35 datasheet: www.ti.com/lit/ds/symlink/lm35.pdf
PIC16F877A datasheet: ww1.microchip.com/downloads/en/devicedoc/39582b.pdf
Modalities of Using the ADC module of the PIC16F877A: http://tahmidmc.blogspot.com/2012/03/modalities-of-using-adc-module-of.html
mikroC LCD library: http://www.mikroe.com/download/eng/documents/compilers/mikroc/pro/pic/help/lcd_library.htm
mikroC ADC library: http://www.mikroe.com/download/eng/documents/compilers/mikroc/pro/pic/help/adc_library.htm
The temperature range for this circuit is 0'C to 150'C.
The analog to digital conversion is done by the PIC ADC module. In the code, I've used the mikroC library function for ADC. You can view the library file here: http://www.mikroe.com/download/eng/documents/compilers/mikroc/pro/pic/help/adc_library.htm
However, you should have a knowledge of how the ADC module works and how to use it. I had written a tutorial on modalities of operation of the PIC 16F877A ADC. You can find the tutorial here:
http://tahmidmc.blogspot.com/2012/03/modalities-of-using-adc-module-of.html
For LCD interfacing, I used the mikroC LCD library. You can view the library file here: http://www.mikroe.com/download/eng/documents/compilers/mikroc/pro/pic/help/lcd_library.htm
Here is the code for PIC16F877A:
(You can download the source file from: https://rapidshare.com/files/3044512089/LM35PIC16F877A.c)
--------------------------------------------------------------------------------------------------------------
//Programmer: Syed Tahmid Mahbub
//Compiler: mikroC PRO for PIC v4.60
//Target PIC: PIC16F877A
--------------------------------------------------------------------------------------------------------------
sbit LCD_RS at RB4_bit;
sbit LCD_EN at RB5_bit;
sbit LCD_D4 at RB0_bit;
sbit LCD_D5 at RB1_bit;
sbit LCD_D6 at RB2_bit;
sbit LCD_D7 at RB3_bit;
sbit LCD_RS_Direction at TRISB4_bit;
sbit LCD_EN_Direction at TRISB5_bit;
sbit LCD_D4_Direction at TRISB0_bit;
sbit LCD_D5_Direction at TRISB1_bit;
sbit LCD_D6_Direction at TRISB2_bit;
sbit LCD_D7_Direction at TRISB3_bit;
unsigned long ADRead;
unsigned int vDisp[3];
unsigned char Display[7];
void main() {
PORTA = 0;
TRISA = 0X01;
PORTB = 0;
TRISB = 0;
LCD_Init();
LCD_Cmd(_LCD_CURSOR_OFF);
LCD_Cmd(_LCD_CLEAR);
LCD_Out(1, 1, "Temp:");
//Display = "+125 'C";
Display[4] = 39; //'
Display[5]= 'C';
ADCON1 = 0x0E;
ADC_Init();
while (1){
ADRead = (ADC_Get_Sample(0) * 500) >> 10;
vDisp[0] = ADRead / 100;
vDisp[1] = (ADRead / 10) % 10;
vDisp[2] = ADRead % 10;
Display[1] = vDisp[0] + 48;
Display[2] = vDisp[1] + 48;
Display[3] = vDisp[2] + 48;
LCD_Chr(1, 8, Display[0]);
LCD_Chr(1, 9, Display[1]);
LCD_Chr(1, 10, Display[2]);
LCD_Chr(1, 11, Display[3]);
LCD_Chr(1, 12, Display[4]);
LCD_Chr(1, 13, Display[5]);
//LCD_Out(1, 8, ); // 'Show temperature
delay_ms(200); //200ms delay for waiting
}
}
--------------------------------------------------------------------------------------------------------------
Reference documents:
LM35 datasheet: www.ti.com/lit/ds/symlink/lm35.pdf
PIC16F877A datasheet: ww1.microchip.com/downloads/en/devicedoc/39582b.pdf
Modalities of Using the ADC module of the PIC16F877A: http://tahmidmc.blogspot.com/2012/03/modalities-of-using-adc-module-of.html
mikroC LCD library: http://www.mikroe.com/download/eng/documents/compilers/mikroc/pro/pic/help/lcd_library.htm
mikroC ADC library: http://www.mikroe.com/download/eng/documents/compilers/mikroc/pro/pic/help/adc_library.htm
Hi. Would you please review my code here.?? I want to use LM35 sensor with PIC16f877a to make a system with below requirements.
ReplyDeletetemperature >25celsius = only led1 blink
temperature <20celsius = only led2 blink
else, neither blink.
I used MPLAB Hi Tech as compiler. But, sadly it isn't working. Can you please advice what should I corrected?? Thank you very much
#include
#include
__CONFIG(0x3F32); // PIC16F77A Configuration Fuses
#define ADC_value
#define ADC_init
#define LED1 RB2
#define LED2 RB3
ADC_init ();
void main ()
{
TRISA = 0b00000001; //set pin 0 at portA as input
TRISB = 0b00000000; //set portB as output
PORTB = 0; //clear portB
while (1); //loop forever
{
unsigned int ADC_value = 0;
unsigned int temp = 0;
ADON = 1;
ADC_value = read_adc (0); //read analog inputs from sensor at channel 0
temp = (ADC_value/2); //convert temp in Volt to Celcius
if (temp < 20);
LED1 = 1;
LED2 = 0;
else if (temp > 25);
LED2 = 1;
LED1 = 0;
else
LED1 = 0;
LED2 = 0;
__delay_ms (100);
}
}
void ADC_init (void)
{
*// ADC Initialization//*
ADCON0 =0b10000001; //set ADC FOSC/32, channel 0 for input AN0, ADC on
ADCON1 =0b10001110; //right justified for 10-bits, analog input for pin AN0-AN3
}
unsigned int read_adc (void)
{
unsigned int digit = 0;
__delay_ms (1);
GODONE = 1;
while (GODONE==1);
digit = (unsigned int)ADRESH<<8;
digit = digit + ADRESL;
return digit;
}
hi what LCD OR versión do you use of proteus? i can't run the program :/
ReplyDeleteI just used a simple 16x1 LCD. What problem are you running into?
DeleteHi there! Can you send me the complete schematic diagram of this project?I'm using sourceboost IDE C but I need to program this using assembly can someone provide me an assembly code for this project?
ReplyDeleteHelp would be much appreciated. Thanks!

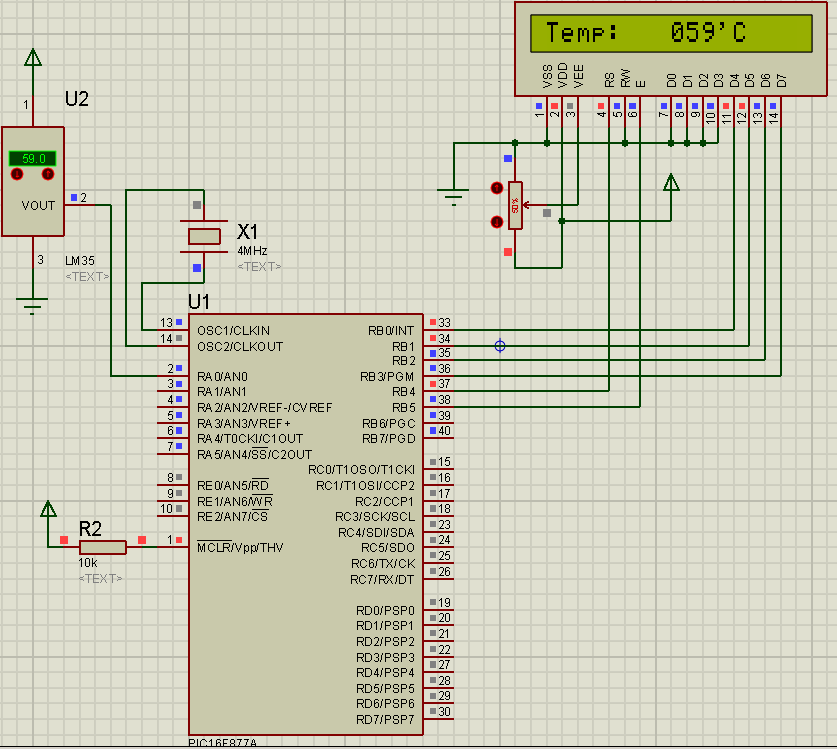

The schematic is shown here. You just need to supply the microcontroller VDD and VSS lines from your input supply (5V). That's the only thing not shown here.
